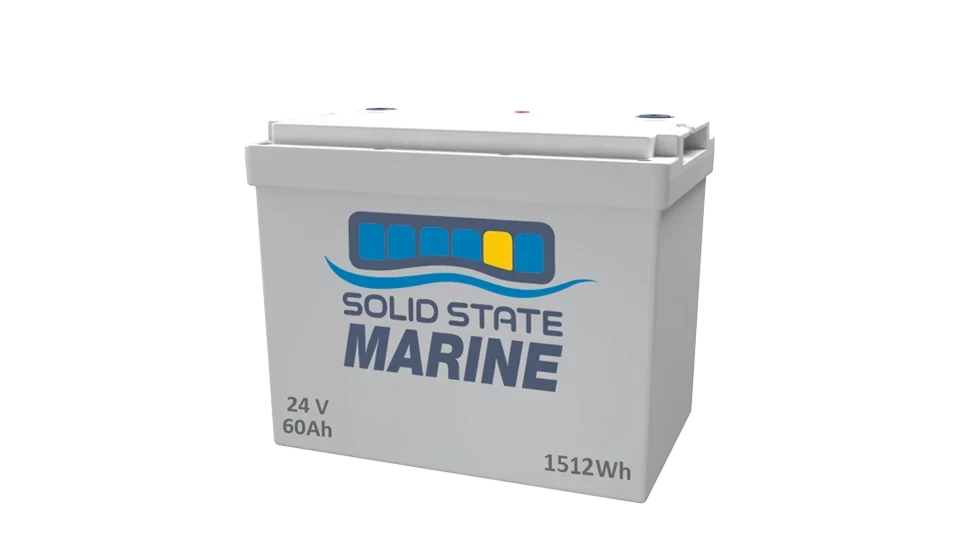

The Solid State Marine 24V 60Ah Deep Cycle + Starting Battery (model SSM24-24V60Ah) is a BCI Group 24 solid-state lithium battery for engine starting and deep cycle use. Solid State Marine lists it among its trolling motor batteries, and it suits 24V trolling motors. It is designed as a drop-in replacement for AGM or lithium (LFP) batteries.
-
Capacity: 24V, 60Ah.
-
Size and weight: BCI Group 24; 17 lb.
-
Discharge: 60A continuous.
-
Charging: CC/CV; up to 60A charge current (20A standard).
-
Cycle life: rated for 3,000 cycles.
-
Terminals: brass M8 bolts.
-
Battery management: built-in BMS with low-temperature, high-temperature, short-circuit and abnormal-current protection; low-temperature protection at -4°F (-20°C) with automatic recovery.
-
Operating temperature: charge and discharge from -4°F to 155°F; storage from -4°F to 113°F.
-
Housing: ABS case, flame-retardant to UL94 V0; IP67 rated.
-
Connections: up to 4 batteries in parallel or 2 in series.
-
Certifications: UL 1642 and UN38.3; meets ABYC standards.
-
Warranty: 8 years against manufacturer defects, with free replacement for the first 5 years (Solid State Marine)
