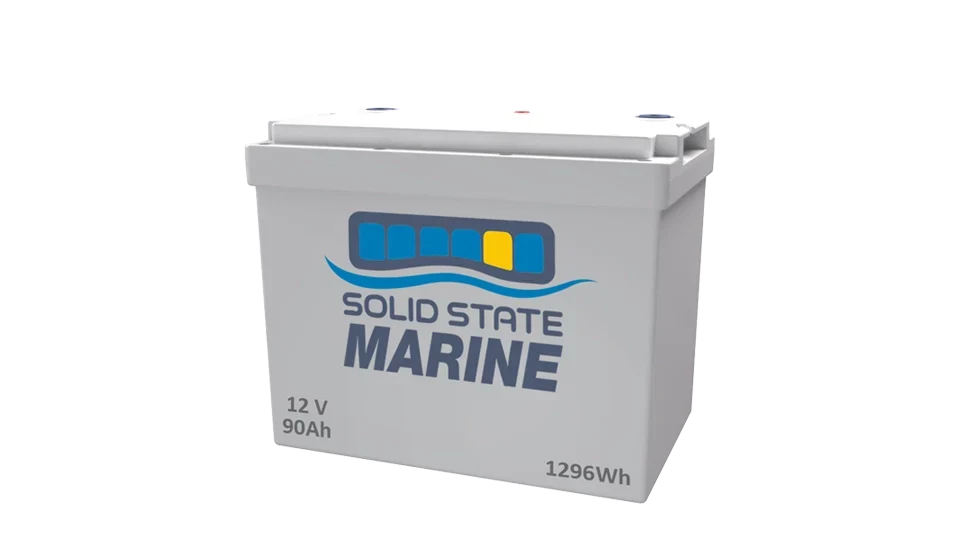

The Solid State Marine 12V 90Ah Deep Cycle Battery (model SSM24) is a BCI Group 24 battery built with solid-state lithium cells. It is designed as a replacement for AGM or LFP batteries in deep cycle use on boats and kayaks, and Solid State Marine lists it among its trolling motor batteries.
-
Capacity: 12V, 90Ah.
-
Size: BCI Group 24.
-
Discharge: 90A continuous; 180A peak for 10 seconds.
-
Charging: CC/CV; up to 90A charge current (30A standard).
-
Cycle life: rated for 3,000 cycles.
-
Terminals: M8 bolts.
-
Battery management: built-in BMS with low-temperature, high-temperature, short-circuit and abnormal-current protection; low-temperature protection at -4°F (-20°C) with automatic recovery.
-
Operating temperature: charge and discharge from -4°F to 155°F; storage from -4°F to 113°F.
-
Housing: ABS case, flame-retardant to UL94 V0; IP67 rated.
-
Connections: up to 4 batteries in parallel or 2 in series.
-
Certifications: UL 1642 and UN38.3; meets ABYC standards.
-
Warranty: 8 years against manufacturer defects, with free replacement for the first 5 years (Solid State Marine)
Solid State Marine does not publish a cold cranking amp (CCA) rating for this model; it is sold for deep cycle use.
